Ra (HDS) Titanium Clicky Nichia E21 mod

id30209

Flashaholic
17 Mai 2018
114
203
43
Croatia


Pardon my english gents...

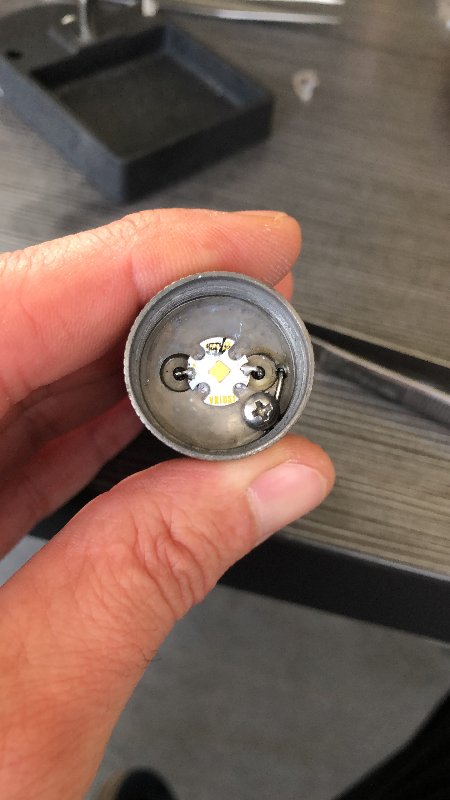

Simple mod, 10mm MCPCB from Virence with E21 sw403 already soldered and just desolder old GoldenDragon from contacts.
MCPCB cutouts fits perfect and centered on GD locating pins on Ra shelve so all i had to do was to solder pos and neg to it.
Since the thickness of MCPCB is only 1mm it's a bit out of focus but that can be easily fixed with several layers of copper tape.

I didn't have much time to finish it but it's next on my list.
