Manker U22 1500 Lumens Pocket Thrower is releasing

Manker

TL-Hersteller
24 Mai 2016
43
96
18
China
Olight Taschenlampen
Trustfire

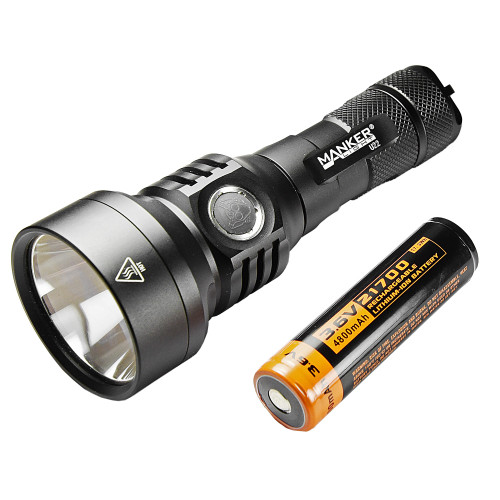

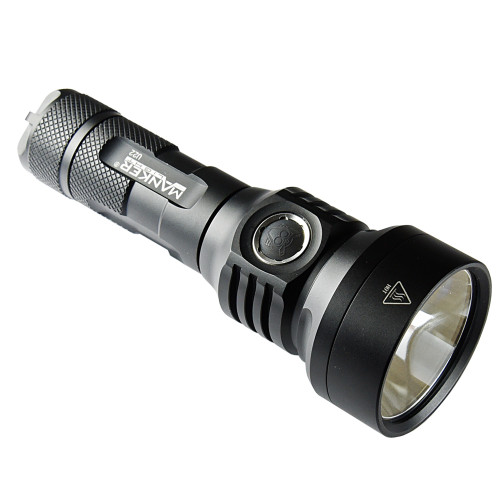

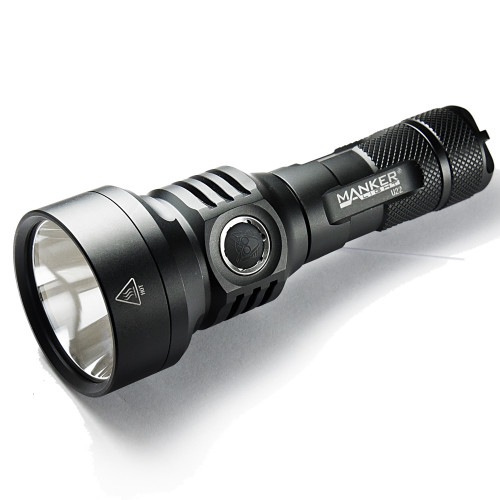

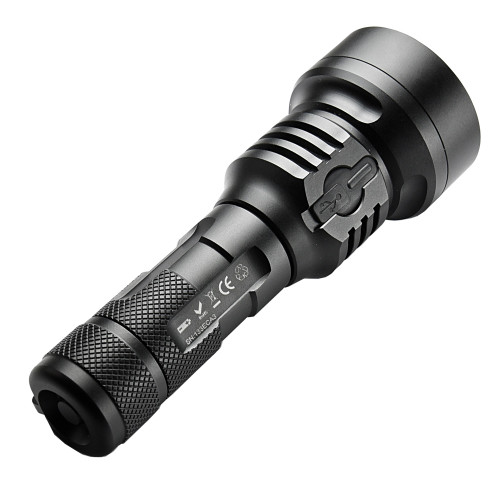

Manker U22 1500 Lumens Pocket Thrower CREE XHP35 HI LED Flashlight









Features
Emitter: CREE XHP35 HI LED
Maximum output: 1500 lumens

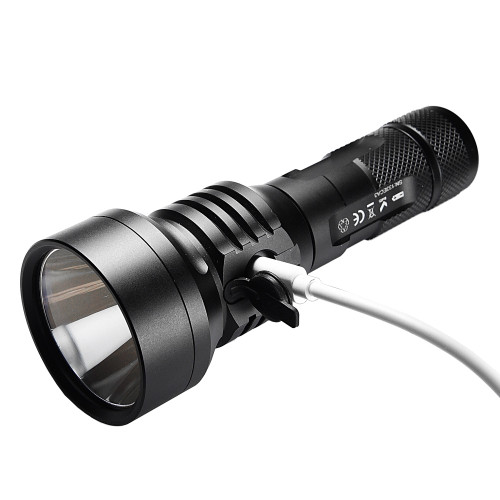

With Type-C USB Charging function

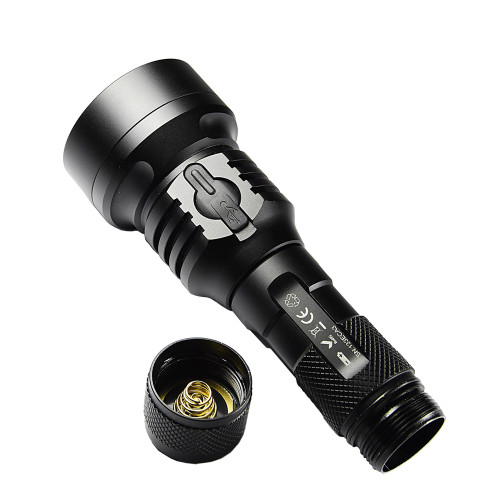

Power by 1x 21700 battery (Battery NOT Included)
Maximum beam intensity: 65000cd
Maximum beam distance: 509meters
Working voltage: 2.8v-4.35v (over discharge protection)
Driver: Most efficiency constant current circuit
Material: Aircraft-grade aluminum body
Surface treatment: Premium type III hard-anodized anti-abrasive finish

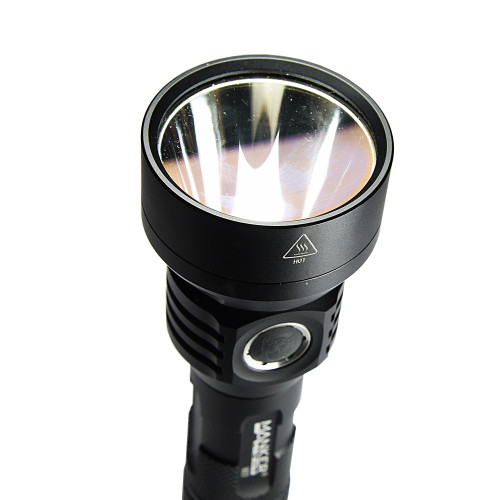

Lens: Toughened ultra-clear glass lens with anti-reflective coating
Waterproof: ipx-8 (2 meter under water)
Impact resistance: 2meters
Tail stand

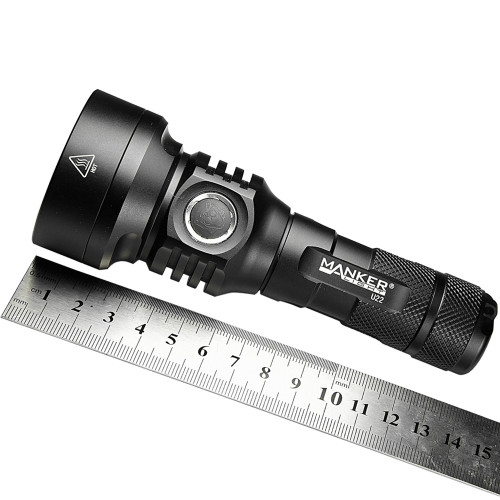

Dimensions: 140mm in length x 51mm in diameter
Weight: 183g (without battery)
Accessories: o-ring *1, Lanyard *1, USB Type-C charging cable *1

Brightness levels &runtime:

- Moonlight 1-5lm 960hrs,
- Low 90lm 25hrs,
- Medium1 250lm 8.5hrs,
- High 630lm 4.2hrs,
- Turbo 1500-630lm 3min-4hrs
- Strobe 1500lm


Operation:
1. When the flashlight is off, one click, access to moonlight mode (left part of the figure), one click to circle: moonlight - low - medium 1 - medium 2 - High. Long press for off.
2. When the flashlight is off, long press to access to the mode your last use as in left part of the figure (Memory function), one click for circle. Long press for off.
3. When the flashlight is off, double click access to Turbo, one click for circle. Long press for off.
4. When the flashlight is on, double click to switch between the two groups (left and right part of the figure)
Side switch battery indicator:
1. Blue: More than 75%
2. Purple: 50%
3. Red: Less than 20%
Lock out:
One click - double - triple from any mode to lock out the flashlight.(Only the battery indicator works when lock out)
Engineering Mode (Choose output level for Moonlight mode):
Long press for off and still hold on, the side button battery indicator will turn on and then quick click for 4 times to get access to enginering mode. One click to check diffferent level and long press to make your final choice.



More details please visit: http://www.mankerlight.com/manker-u2...ed-flashlight/

Zuletzt bearbeitet:

oOFOXOo

Flashaholic**
9 März 2015
3.961
5.899
113
33
Tamsweg (A)
www.instagram.com
Looks very interesting! But I think it would be necessary to include a 21700 LiIon battery because not many Flashys have already flashlights with this type of battery! Also the availability is not very high of this battery type...
Will the U22 be available with CW and NW LED?

kind regards,
Andreas


amaretto

Moderator & Beamshot-SEK
Teammitglied
12 August 2010
18.407
19.555
113
NRW
Eventuell ein interessanter Pocket-Thrower.

Could be a nice light. Manker is so kind to send the TLF a testing sample for passaround. Our members will be able to test it as soon as it arrives.
(Oh Gott, keine Gewähr auf korrektes Englisch ;-) )

Soll heißen, eine Testlampe für Passaround ist unterwegs und es wäre schön, wenn ihr die Lampe ausprobieren würdet. :)
